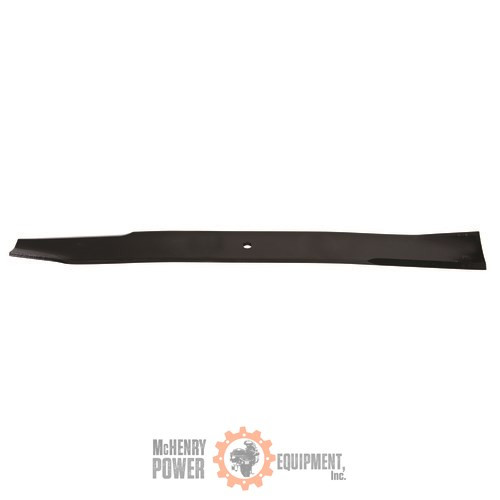

Details
- Center hole: 1/2"
- Requires 5 blades for 90" cut
- Requires 7 blades for 124" cut
- High-lift: The aggressive blade angle increases air flow to push debris up-and-out for superior bagging or side discharge.
- Superior mulching for bagging and discharge efficiency
- Enhanced hardening to keep the blade sharper and more durable
- Fits Jacobsen models: AR-5, AR-522, and AR-722T
Blades
| Blade Width Measure near the center of the blade. | 2.50" |
| Blade Thickness Measure near the center of the blade. | 0.250" |
| Blade Length Measured diagonally from the corners of the blade | 22-5/16" |
| Center Hole Size Many blades will have a round hole in the center of the blade and you will need to know its diameter. Blade Length 5 or 7 Point Star Center holes may be 5 or 7 point star shaped. 5 point star on blade7 point star on blade Square or Rectangular The MTD built blades on many walk behind lawn mowers have a 'bow-tie' hole. In this case the Oregon replacement blade will have a rectangular center hole which will fit on the bow-tie pattern on the blade adapter. Square or Rectangular hole on blade MTD Blades The MTD® built blades (Bolens, Cub Cadet, Troy-bilt, White, Yard Machine, and Yardman) may have a 6 point star. Oregon replacement blades will have a 'Y' shaped center hole which will fit exactly on the 6 point star on the blade spindle. 6 point star for MTD blades The two sizes of the 6 point star. If your blade spindle has a bolt and lock washer that holds the blade to the machine you would use the 11/16" star or 'Y' blade. blade spindle with bolt and lock washer. If your blade is secured with a large flange nut then you would use the 5/8" star or 'Y' blade. blade spindle with large flange nut | 1/2" |
| OffSet (Sometimes referred to as offset): If you set the blade on a table this is the distance the center of the blade is above the table top (if any) when the cutting edges are flat on the table | 1/8" |
| Air Lift Air lift is the distance the lift panel rises above the cutting edge. | 1-1/8" |
General
| Color | Black |
| Product UOM | Each |
| Weight (with Packaging) | 4.01 Lb |
| Product Height | 0.25 |
| Product Length | 22-5/16" |
| Product Width | 2.5 |
