KOHLER ENGINE MODEL AND SPEC # PA-CH395-3154 ARKETING BASIC

Kohler

MSRP: $1,148.62
$1,004.16
(You save $144.46 )
(No reviews yet) Write a Review
SKU:
KOH~PA-CH395-3154
UPC:
885612358363
Adding to cart… The item has been added

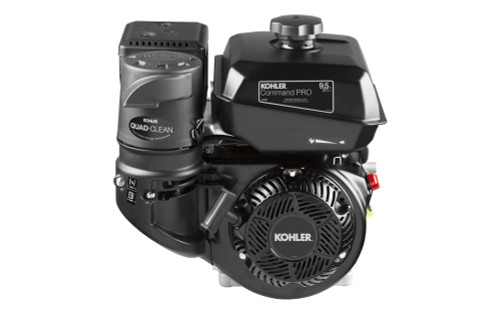

Picture is stock kohler picture of engine series.

Before macking purchase

  You must contact us with themodel and spec of your engine ot make sure this is correct replacement for you.





Engine Type

4-cycle, gasoline, OHV, cast iron cylinder liner, aluminum block

Model Command PRO CH395
Power[1] kw (hp) 7.1(9.5)
Displacement mm3 (in3) 277 (16.9)
Bore mm (in) 78 (3.1)
Stroke mm (in) 58 (2.3)
Gross Torque[1] Nm (lb-ft) 18.8 (13.9)
Compression Ratio 8.5:1
Dry Weight kg (lbs) 27.8 (61.5)
Oil Capacity L (US qt) 1.3 (1.4)
Lubrication Splash
Dimensions LxWxH mm (in) 404 x 427 x 424
(15.9 x 16.8 x 16.7)
Backpressure Limit[2] 30
Certified Power[3] kw (hp) 6.8 (9.1)
Certified rpm rpm 4000
Emissions Compliance
  • China Phase II
  • CARB Phase III
  • EPA Phase III
  • EU Stage V
Engine Type Commercial

Length is PTO to recoil cover. Width is fuel tank to muffler. Height is from mounting surface to top of muffler.

1 Power (hp) and Torque (ft lbs) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.


2 Inches of H20 @ 3600 RPM WOT


3 J1995 power and torque certified by 3rd Party Witness
