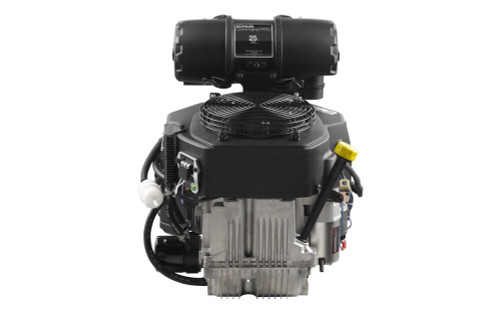

Picture is stock kohler picture of engine series.
Before macking purchase
You must contact us with themodel and spec of your engine ot make sure this is correct replacement for you.
COMMAND PRO CV742
You work your tail off 12+ hours a day. It's time to hold your engine to the same standard. With extended maintenance intervals and fuel-efficient operation, KOHLER Command PRO engines work as hard as you do.
- Integrated oil coolers extend oil-change intervals and maintain low temperatures during the entire power range
- High-efficiency, heavy-duty air filters provide protection from debris and ensure longer service intervals
- Extra-large sleeve bearings support heavy loads in commercial and industrial environments
- Engine Type
4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum blockModelCommand PRO CV742Powerkw (hp)18.6(25)Displacementmm3 (in3)747 (45.6)Boremm (in)83 (3.3)Strokemm (in)69 (2.7)Gross TorqueNm (lb-ft)55.3 (40.8)Compression Ratio9.1:1Dry Weightkg (lbs)48 (105)Oil CapacityL (US qt)1.9 (2)LubricationFull pressure w/full-flow filterDimensions LxWxHmm (in)521 x 413 x 506
(20.5 x 16.2 x 19.9)Backpressure Limit50Certified Powerkw (hp)18.7 (25)Certified rpmrpm3600Emissions Compliance
- EU Stage V
- China Phase II
- EPA Phase III
- CARB Phase III
