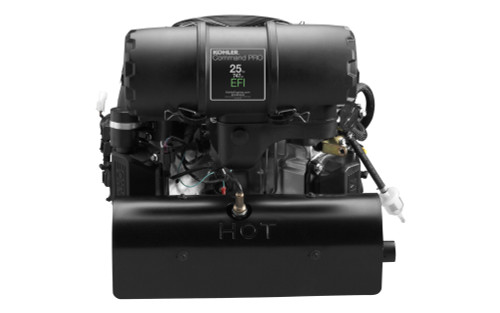

Picture is stock kohler picture of engine series.
Before macking purchase
You must contact us with themodel and spec of your engine ot make sure this is correct replacement for you.
COMMAND PRO EFI ECV740
If you want lower operating costs and less downtime, the fuel-sipping KOHLER® Command PRO® EFI is your engine. Closed-loop electronic fuel injection saves you big on gas and covers more ground between fill ups.*
Features
- Saves significantly on fuel, with less downtime for refueling*
- 3-year unlimited-hour limited commercial warranty
- Advanced sensor technology allows engine to optimize performance by automatically adapting to operating conditions
- Starts like your car - just turn the key and go
- EFI Diagnostic Software provides quick and easy troubleshooting to minimize downtime
- *Compared to a comparable KOHLER carbureted engine under comparable loads and duty cycles
Engine Type
4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block, electronic fuel injection
ModelCommand PRO EFI ECV740
Power[1]kw (hp)18.6(25)
Displacementmm3 (in3)747 (45)
Boremm (in)83 (3.3)
Strokemm (in)69 (2.7)
Gross Torque[1]Nm (lb-ft)54.1 (39.9)
Compression Ratio9.1:1
Dry Weightkg (lbs)49 (108)
Oil CapacityL (US qt)1.9 (2)
LubricationFull pressure w/full-flow filter
Dimensions LxWxHmm (in)541 x 470 x 447
(21.3 x 18.5 x 17.6)
(21.3 x 18.5 x 17.6)
Backpressure Limit[2]50
Certified Power[3]kw (hp)18 (24.2)
Certified rpmrpm3600
Emissions Compliance
- EPA Phase III
- EU Stage V
- CARB Phase III
- China Phase II
Engine TypeCommercial
Length is front to rear of engine. Width is valve cover to valve cover. Height is mounting surface to top of air cleaner.
