Kohler engine model spec # PA-ZT710-3029 WRIGHT MFG

Kohler

MSRP: $1,646.06
$1,572.02
(You save $74.04 )
(No reviews yet) Write a Review
SKU:
KOH~PA-ZT710-3029
UPC:
88561281267
Adding to cart… The item has been added

Listing only shows data on engines series

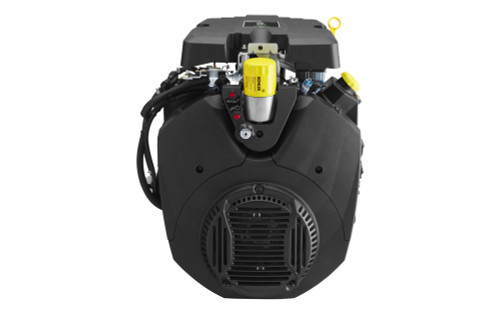

Picture is stock kohler picture of engine series.

Before macking purchase

  You must contact us with themodel and spec of your engine ot make sure this is correct replacement for you.





Engine Type

Four-cycle, twin-cylinder, air-cooled, vertical shaft, gasoline, OHV, with cast iron liner.

Model ZT710
Power[1] kw (hp) 14.2(19)
Displacement mm3 (in3) 725 (44.2)
Bore mm (in) 83 (3.3)
Stroke mm (in) 67 (2.6)
Gross Torque[1] Nm (lb-ft) 54.2 (40)
Compression Ratio 9.1:1
Dry Weight kg (lbs) 41.3 (91)
Oil Capacity L (US qt) 1.9 (2)
Lubrication Pressure lubrication w/full flow filter
Dimensions LxWxH mm (in) 478 x 443 x 431
(18.8 x 17.5 x 17)
Backpressure Limit[2] 50
Certified Power[3] kw (hp) 15.1 (20.2)
Certified rpm rpm 3600
Emissions Compliance
  • EU Stage V
  • EPA Phase III
  • CARB Phase III
  • China Phase II
Engine Type Commercial

Length is front of air cleaner cover to back of blower housing. Width is side to side. Height is mounting surface to grass screen.

1 Power (hp) and Torque (ft lbs) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.


2 Inches of H20 @ 3600 RPM WOT


3 J1995 power and torque certified by 3rd Party Witness
