KOHLER ENGINE MODEL AND SPEC # PA-CH740-3361 ARKETING BASIC PRO (ANTI-I

Kohler

MSRP: $2,933.60
$2,675.25
(You save $258.35 )
(No reviews yet) Write a Review
SKU:
KOH~PA-CH740-3361
UPC:
885612766908

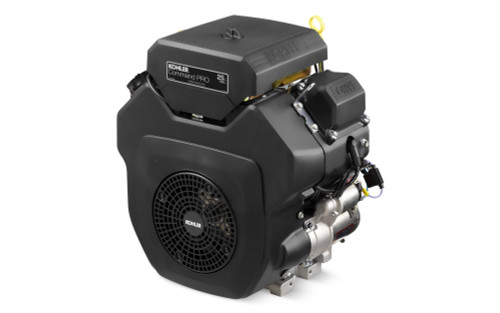

Picture is stock kohler picture of engine series.

Before macking purchase

  You must contact us with themodel and spec of your engine ot make sure this is correct replacement for you.





COMMAND PRO CH740

You work your tail off 12+ hours a day. It's time to hold your engine to the same standard. With extended maintenance intervals and fuel-efficient operation, KOHLER Command PRO engines work as hard as you do.

Features

  • Integrated oil coolers extend oil-change intervals and maintain low temperatures during the entire power range
  • High-efficiency, heavy-duty air filters provide protection from debris and ensure longer service intervals
    • Extra-large sleeve bearings support heavy loads in commercial and industrial environments



Engine Type

4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block

ModelCommand PRO CH740
Power[1]kw (hp)18.6(25)
Displacementmm3 (in3)725 (44.0)
Boremm (in)83 (3.3)
Strokemm (in)67 (2.6)
Gross Torque[1]Nm (lb-ft)53.1 (39.2)
Compression Ratio9.0:1
Dry Weightkg (lbs)43 (94)
Oil CapacityL (US qt)1.9 (2)
LubricationFull pressure w/full-flow filter
Dimensions LxWxHmm (in)355 x 451 x 483
(14 x 17.7 x 19)
Backpressure Limit[2]50
Certified Power[3]kw (hp)18.2 (24.4)
Certified rpmrpm3600
Emissions Compliance
  • EU Stage V
  • China Phase II
  • CARB Phase III
  • EPA Phase III
Engine TypeCommercial

Length is front to rear of engine. Width is valve cover to valve cover. Height is mounting surface to top of air cleaner.



1 Power (hp) and Torque (ft lbs) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.


2 Inches of H20 @ 3600 RPM WOT


3 J1995 power and torque certified by 3rd Party Witness
